Technical Parameter

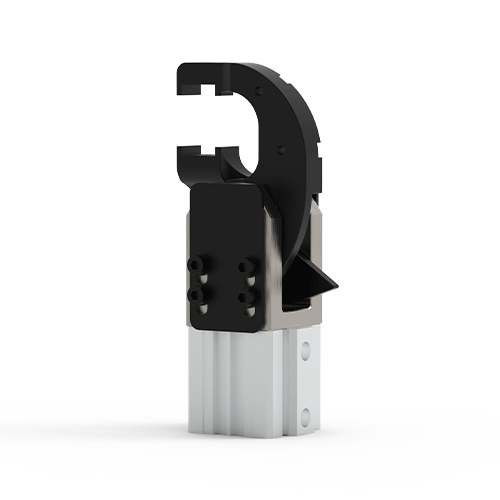

APG-F2 Clamp (self locked)






Working pressure: 0.3-0.8MPa

Clamping force（ under 0.6Mpa）：1000N

Operating temperature: Common temperature：-20-60℃

High temperature：-20-200℃

Locking/opening：0.2s

Weight：1kg

Max blank thickness：3mm

Self-locking function ：Yes

Cylinder joint size：2-G1/8

Application：Vertical large forced clamp, used for the blanks edges above 90 degree, and prevent to dropping the blanks,Worked at transfer and feeder mode.

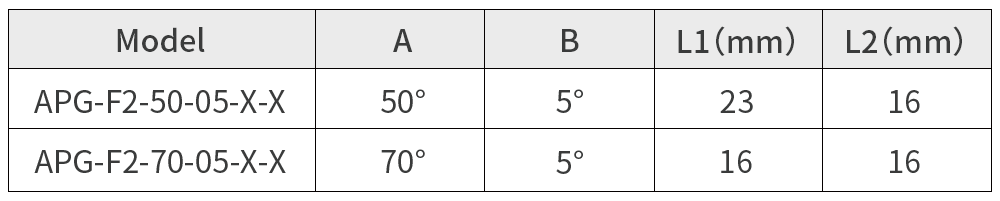

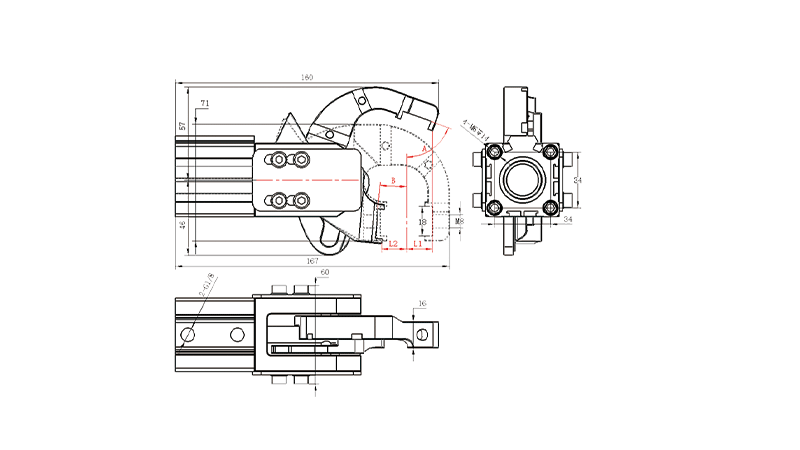

Specifications
