Technical Parameter

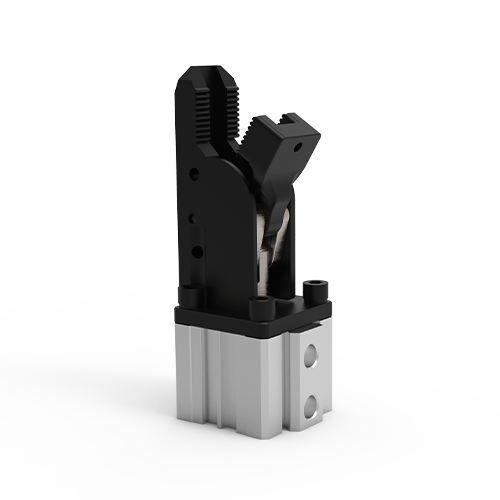

APG-S2C Clamp






Working pressure：0.3-0.8MPa

Clamping force（ under 0.6Mpa）：400N

Operating temperature：Common temperature:-20-60℃

High temperature：-20-200℃

Locking/opening：0.2s

Weight：0.6kg

Max. blank thickness：3mm

Self-locking function ：No

Cylinder joint size：2-G1/8

Application：Flat hinges clamp, without self locking requirement, high efficiency,Worked at transfer mode.

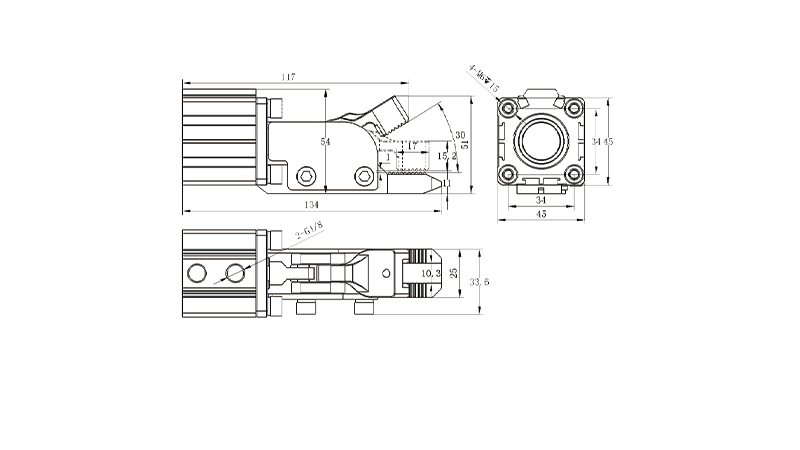

Specifications
