Technical Parameter

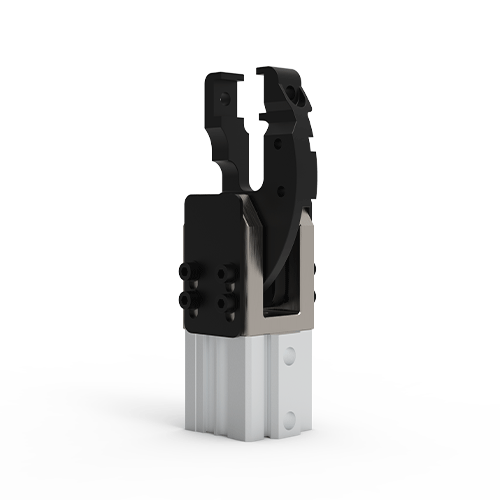

APG-S2 Clamp (self-locked)






Working pressure：0.3-0.8MPa

Clamping force（ under 0.6Mpa）：1000N

Operating temperature：Common temperature:-20-60℃

High temperature：-20-200℃

Locking/opening tim：0.2s

Weight：1kg

Max blank thickness：3mm

Self-locking function ：Yes

Cylinder joint size：2-G1/8

Application：Large forcing clamp, used for high requirement of the blanks, could be adjusted the angles through the sensor, widely application,Worked at transfer and feeder mode.

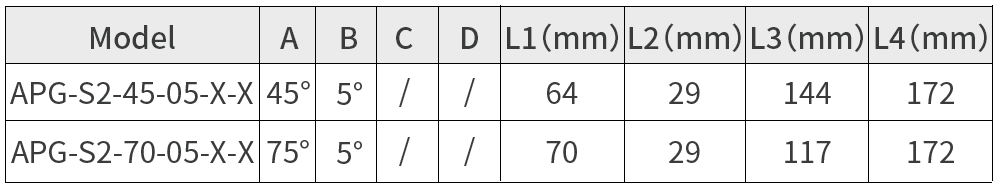

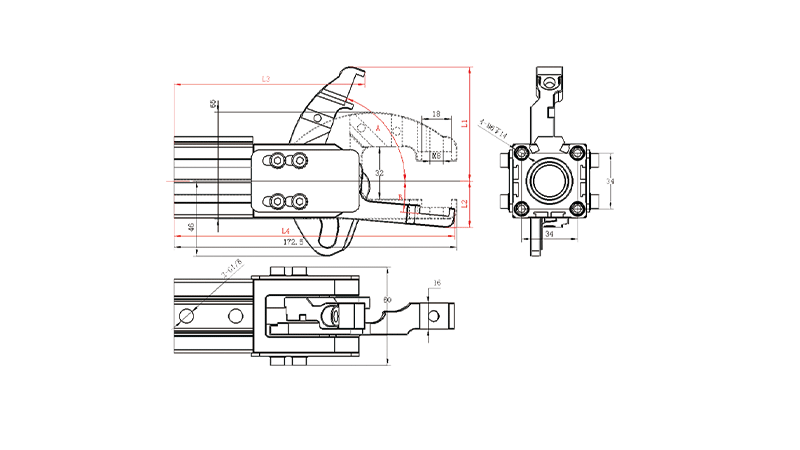

Specifications
