Technical Parameter

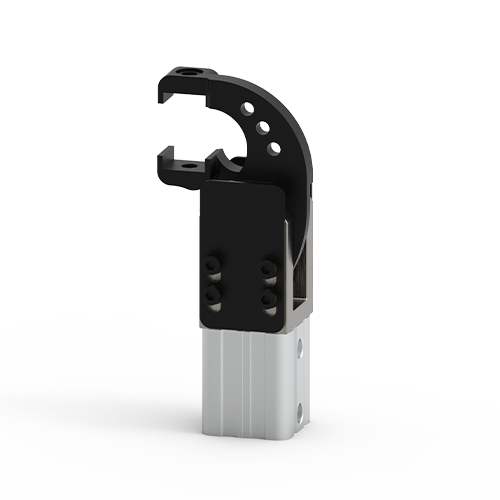

APGL-F1 Clamp (self locked)






Working pressure：0.3-0.8MPa

Clamping force（ under 0.6Mpa）：500N

Operating temperature：Normal temperature: -20-60℃ High temperature: -20~200℃

Locking/opening：0.2s

Weight：0.59kg

Max. blank thickness ：3mm

Self-locking function：Yes

Cylinder joint size：2-G1/8

Application：Vertical-type clamp, suitable for blank 90 °flanging; appropriate clear space should be reserved for the downward movement after the clamp arm is opened

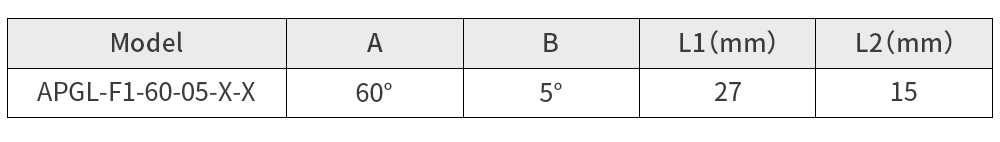

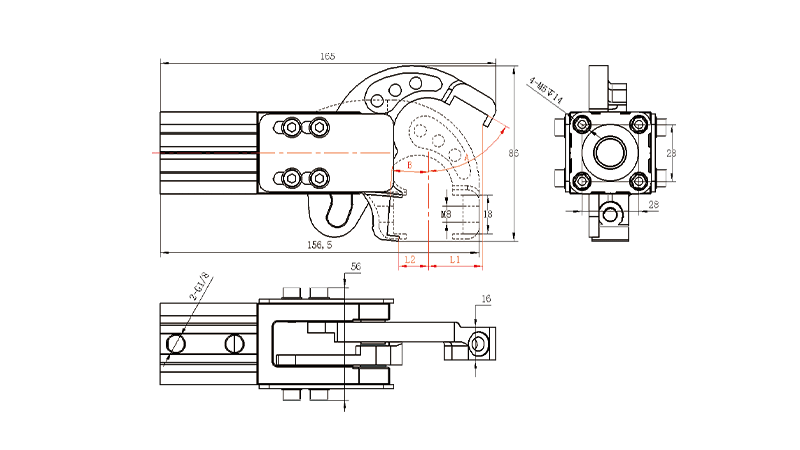

Specification
