Technical Parameter

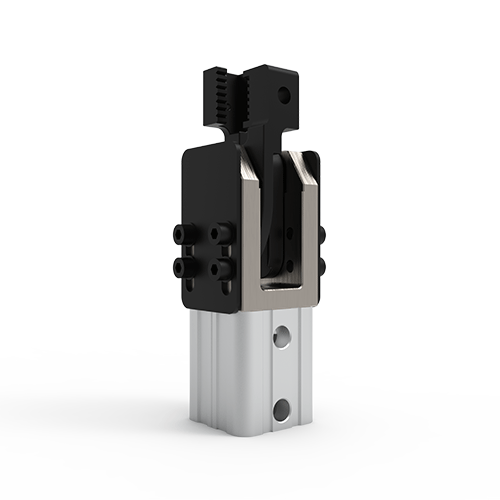

APGL-R1 Clamp (self-locked)






Working pressure：0.3-0.8MPa

Clamping force（ under 0.6Mpa）：500N

Operating temperature：Normal temperature: -20-60℃

High temperature：-20~200℃

Locking/opening： 0.2s

Weight:：0.59kg

Max. blank thickness ：3mm

Self-locking function： Yes

Cylinder joint size：2-G1/8

Application：Quick clamp, with thin lower clamp arm, used for low lifting height of lower die and limited space for jaws to extend

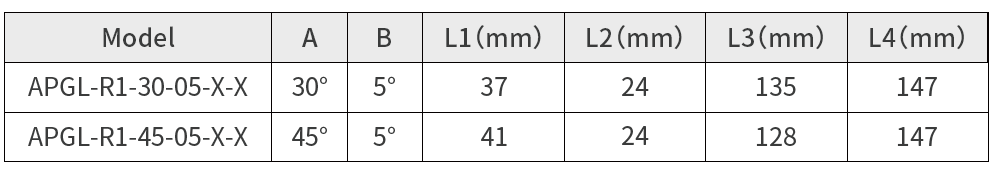

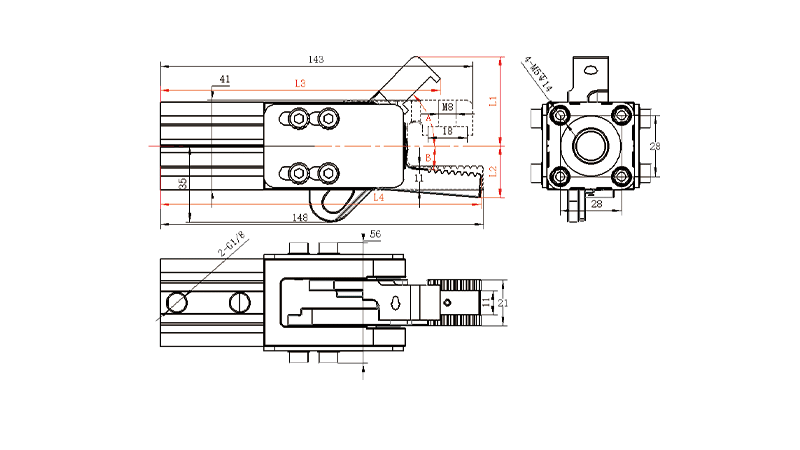

Specification
