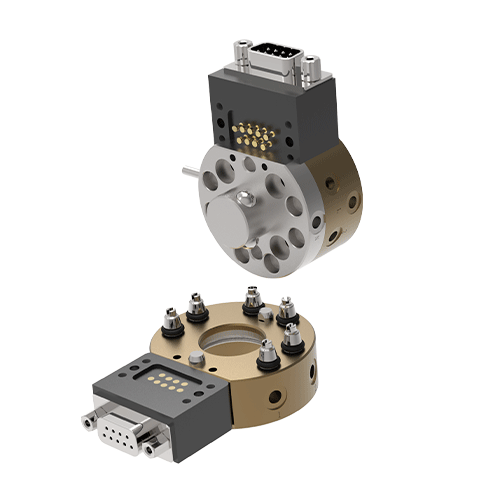

AQC-6
-Carrying capacity ≤ 6Kg
-Steel ball positioning locking mechanism
-Lightweight and compact design
-Mechanical gas cut-off protection mechanism
-Repetitive positioning accuracy up to ± 0.01mm
-Special heat treatment process for imported raw materials, high hardness and toughness of materials, and long service life of products
The quick-change function module provides access to media such as electricity, communications, compressed air, and hydraulic pressure for the robot execution tool, enabling simultaneous connection of supporting media when the main part of the quick-change is quickly connected.The following are the adaptation modules for AQC-6 robot tool quick change products:
Low voltage electrical module
To achieve automatic switching and transmission of weak current signals, typical applications include power supply and signal feedback for sensors, solenoid valves, etc., with a maximum voltage of 50VDC. It can be integrated with a dial switch for tool tray coding.
