Product features
Modular design, easy installation.

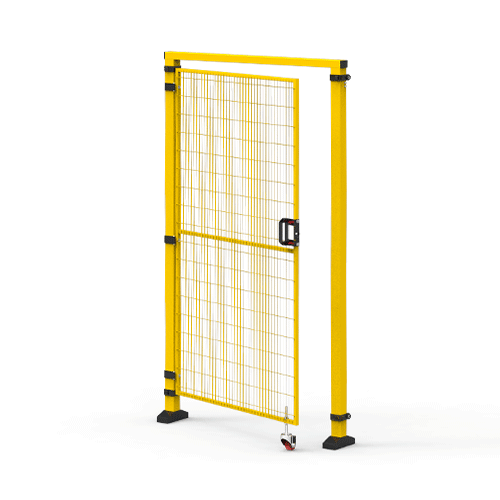

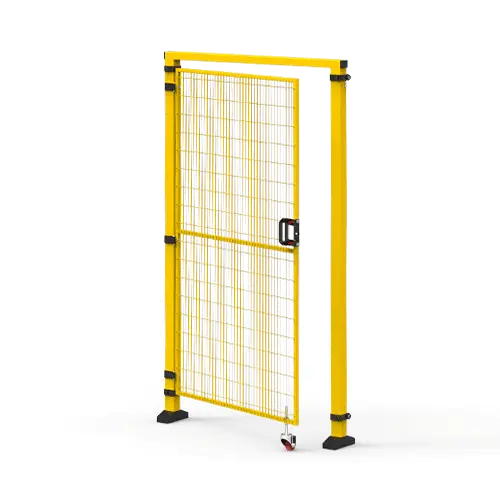

Standard configuration of single-door : 1 set of handle assembly (single open), 1 set of casters.

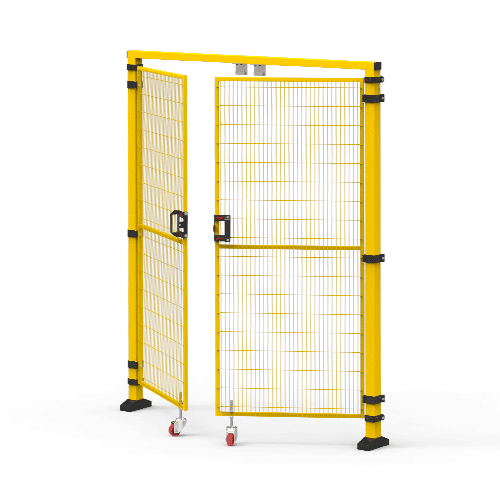

Standard configuration of double-door : 2 sets of handle components (double open), 2 sets of casters.
Optional configuration : ground pin, high-end mechanical lock, safety lock + mechanical pin.
※ Customized services can be provided according to customer needs, 1200/1600 series without door beam.
Technical parameter
Opening direction Left/Right/Left & Right
Open height 2200/2000/1600/1200mm
Open width Single door 700/800/1000/1200/1500mm
Double door 1400/1600/2000/2400/3000mm
Grid 100*20mm
Wire diamete 3mm
Square tube 20*20mm
Colour Yellow/Gray/Black
High quality carbon steel
Tough and firm, resistant to deformation
Professional protection
Encrypt network piece,better security
Environmentally friendly
Imported plastic powder, Swiss electrostatic spraying technology
Solid construction
Unique welding, firm and beautiful
Light and convenient
Modular design, easy installation
Elegant appearance
Unified color, excellent perspective effect
Impact test
According to ISO 14120-2015 standard, can withstand 1600J impact force.
Color difference test
The color difference is measured by the instrument method in accordance with the provisions of the standards GB/T 11186.2-1989 and GB/T 11186.3-1989, and the sampling test is carried out by a spectrophotometer.
Spray layer thickness test
Spray layer thickness conform to GB/T 26941.1-2011 standard. The sampling inspection is done by thickness gauge.
Salt mist test
According to ISO09227 standard to do the corrosion resistance test.
