Unilateral travel: 13mm

Suggested clamping weight: 5.5-8KG

Weight: 1.5-2KG

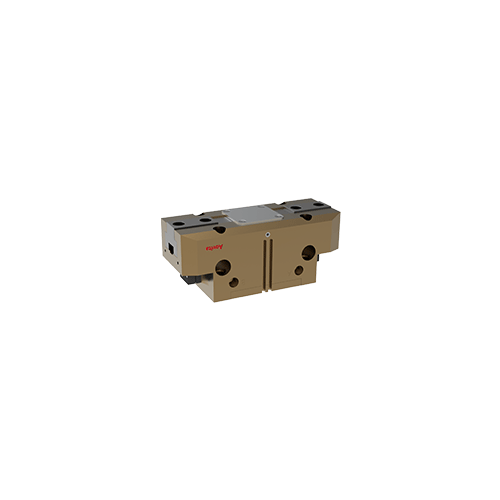

①Parallel gripper

②Finger (with different fingers, the gripper can grip different shapes of workpieces)

③Finger positioning sleeve (used for installation and positioning of fingers)

④External connection positioning sleeve (used for clamping jaws and external connection installation positioning)

⑤Proximity switch (used to detect finger position)

⑥Magnetic switch (used to detect the position of the cylinder piston)

⑦Air connector (used to connect air source)

●Standard configuration

①Parallel gripper

③Finger positioning sleeve (used for installation and positioning of fingers)

④External connection positioning sleeve (used for clamping jaws and external connection installation positioning)
