PST-6000/16

PRODUCT SHOW

PRODUCT STRUCTURE

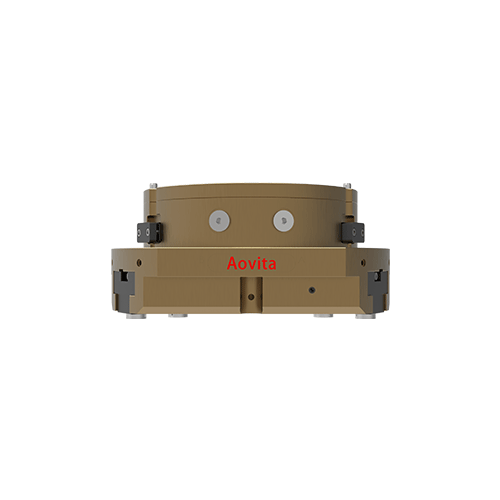

PST-6000/16 centric grippers

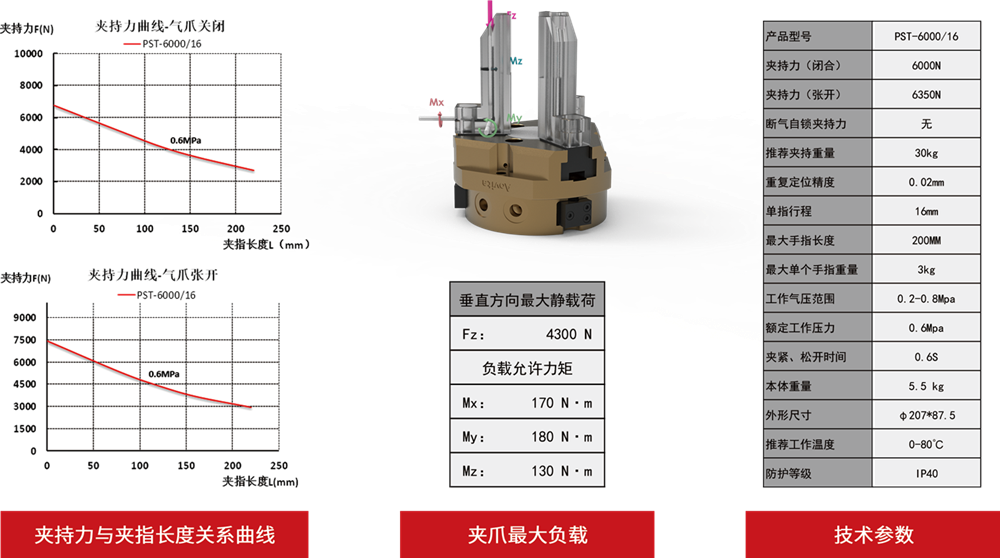

PRODUCT PARAMETERS



Unilateral travel: 16mm

Suggested clamping weight: 30-45KG

Weight: 5.5KG

Specification parameters



①Three finger centric gripper

②Finger (with different fingers, the gripper can grip different shapes of workpieces)

③Finger positioning sleeve (used for installation and positioning of fingers)

④External connection positioning sleeve (used for clamping jaws and external connection installation positioning)

⑤Proximity switch (used to detect finger position)

⑥Magnetic switch (used to detect the position of the cylinder piston)

⑦Air connector (used to connect air source)


●Standard configuration

①Three finger centric gripper

③Finger positioning sleeve (used for installation and positioning of fingers)

④External connection positioning sleeve (used for clamping jaws and external connection installation positioning)


Centric grippers
