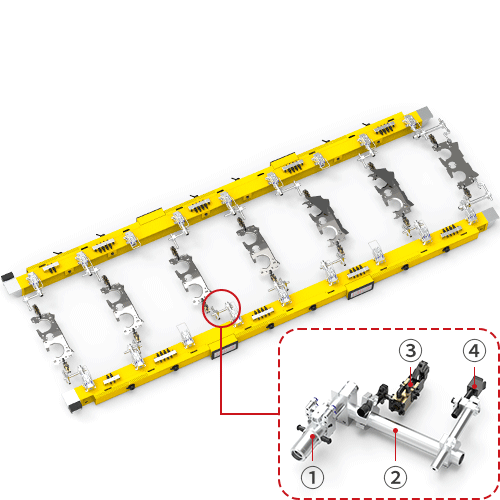

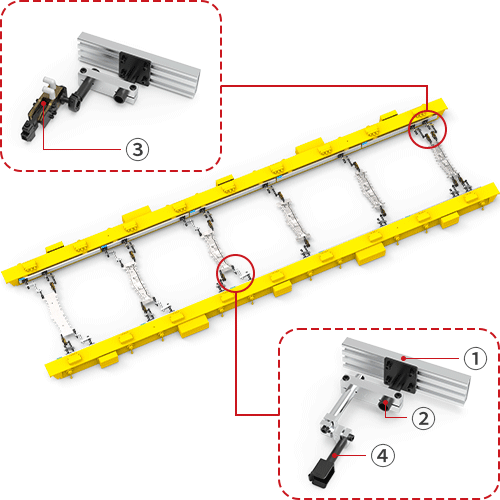

① tool changer component

• Suitable for transfer line, and the main body is made of 80*30 aviation aluminum material. Locking connection with transfer line's crossbar, which can realize the quick changer of the whole set of transfer tooling. It can be matched with air circuit quick-plug according to the information of crossbar, used for clamper air supply; Match with weak power quick plug for detecting switch. With stable and reliable structure, fast and convenient installation, which contributes to the improvement of production efficiency.

② Crosses components

• Consists of fixed base and parallel gripper. The interconnection of the tool changer with the clamp and shovel is realized by mechanical locking. The fixed base adopts eccentric and waist hole（middle hole） design, which can meet different working conditions

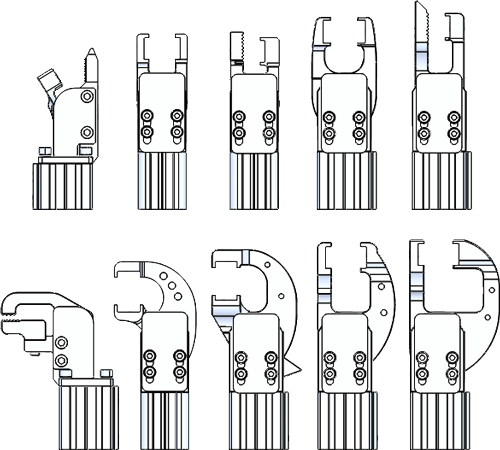

③ Clamp Component

• It consists of clamp, universal ball joint extension arm, jaws, etc. The clamp is ideal for clamping workpieces due to its compact shape and simple structure, while the excellent conditions such as long service life, high clamping force and fast response speed make it a reliable assistant for sheet metal processing. The universal ball joint mechanism at the end of the clamp can be freely rotated or tilted to adapt to different angles of the workpiece. Various types of jaws are available to suit different work requirements and workpiece characteristics. The clamp can also be equipped with double blank detection mechanism and material detection switch according to the usage needs.

④ Supporting shovel component

• This part consists of shovel and attached connecting parts. The shovel's structure is simple and adaptable, which can realize the gripping and transferring of irregular surfaces. It offers excellent cost-efficiency and can be used independently or in combination with clamp. Material detection switch can be equipped according to requirements.

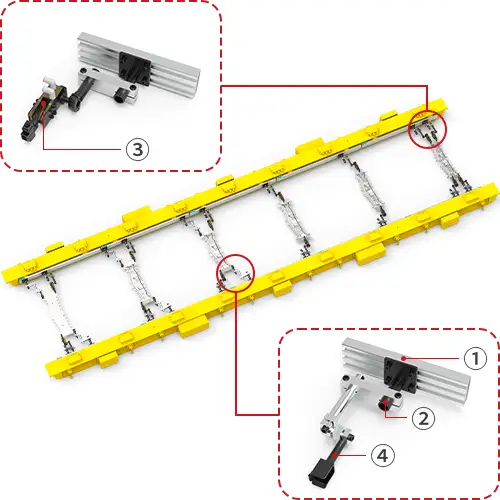

① tool changer component

• Suitable for transfer line, and the main body is made of 80*30 aviation aluminum material. Locking connection with transfer line's crossbar, which can realize the quick changer of the whole set of transfer tooling. It can be matched with air circuit quick-plug according to the information of crossbar, used for clamper air supply; Match with weak power quick plug for detecting switch. With stable and reliable structure, fast and convenient installation, which contributes to the improvement of production efficiency.

② Crosses components

• Consists of fixed base and parallel gripper. The interconnection of the tool changer with the clamp and shovel is realized by mechanical locking. The fixed base adopts eccentric and waist hole（middle hole） design, which can meet different working conditions

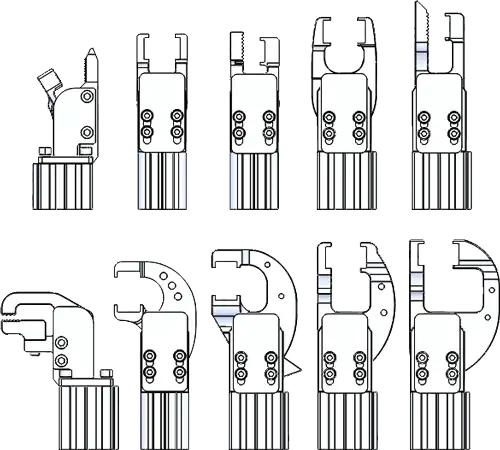

③ Clamp Component

• It consists of clamp, universal ball joint extension arm, jaws, etc. The clamp is ideal for clamping workpieces due to its compact shape and simple structure, while the excellent conditions such as long service life, high clamping force and fast response speed make it a reliable assistant for sheet metal processing. The universal ball joint mechanism at the end of the clamp can be freely rotated or tilted to adapt to different angles of the workpiece. Various types of jaws are available to suit different work requirements and workpiece characteristics. The clamp can also be equipped with double blank detection mechanism and material detection switch according to the usage needs.

④ Supporting shovel component

• This part consists of shovel and attached connecting parts. The shovel's structure is simple and adaptable, which can realize the gripping and transferring of irregular surfaces. It offers excellent cost-efficiency and can be used independently or in combination with clamp. Material detection switch can be equipped according to requirements.

• Self locked function, when the air cut off, it could prevent the blanks suddenly dropped

• Strong clamping force for stable clamping, high productivity.

• Fast response time, can support the application of SPM25 and below.

• Over 95% of parts are self-processed, stable quality and cost-effective.
